轮廓测针

内容介绍：这里可以找到适合您测量工作的轮廓测针。

详细介绍

众多供您选择的原创品牌轮廓测试工具。
轮廓测针

在这里可以找到您三丰、马尔、ZEISS、霍梅尔、东京精密及各品牌的粗糙度轮廓仪探针，满足您的微观轮廓测量。

Typically, the designer of a component specifies a large number of shape and position tolerances in the design drawing, some of them can be checked with a contour measuring machine.

Contact on the workpiece takes place using a probe tip.

In geometry, this has a defined, highly polished radius in the standard of 20µm or 25µm.

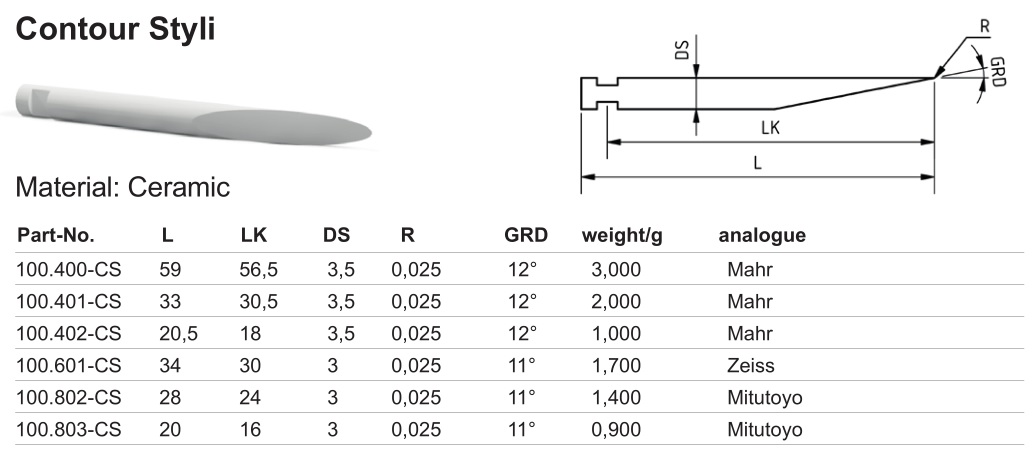

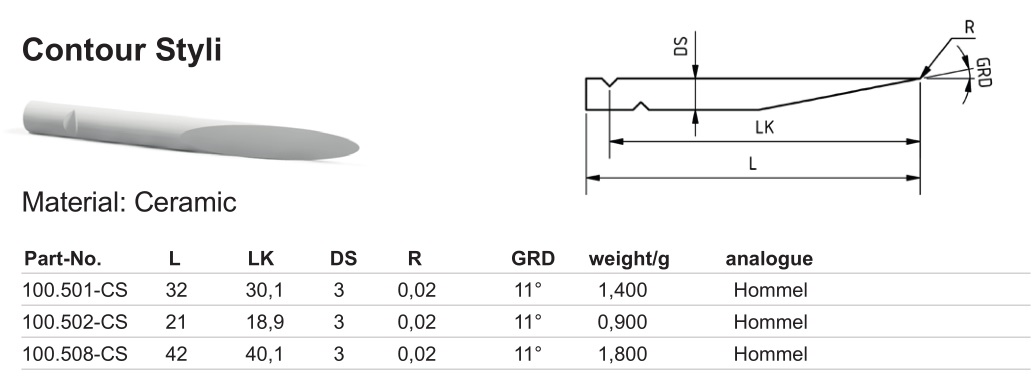

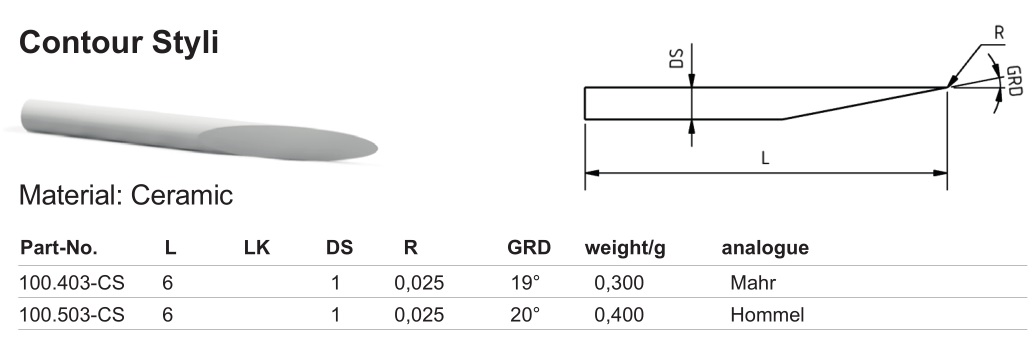

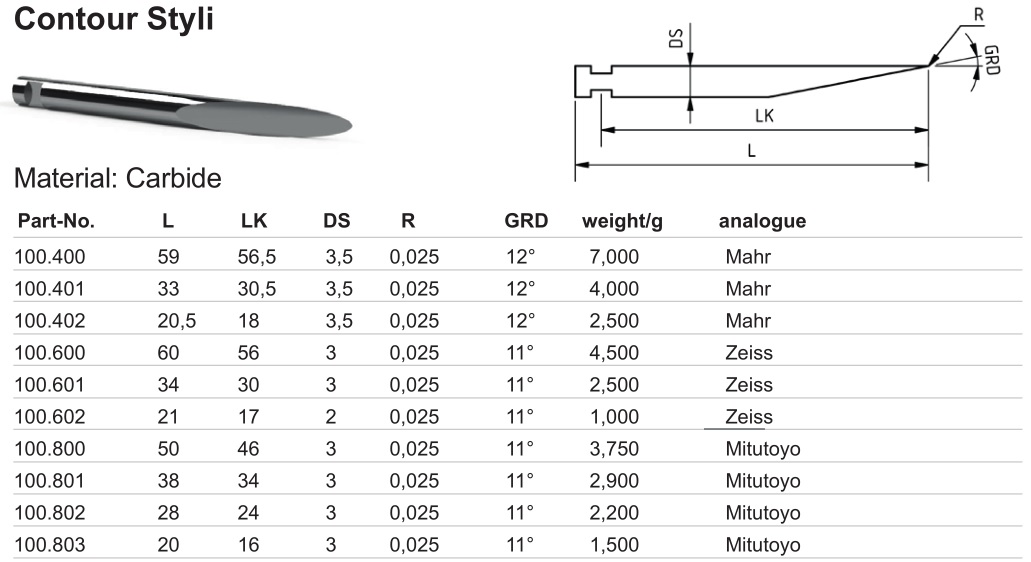

As material for the contour styli is usually a fine-grained hard metal used. At the same time, a ceramic probe tip is being used more and more often. The grain size of the ceramic tip is significantly smaller than that of the hard metal tip, which results in extremely high wear resistance. It also has a better hardness.

Another advantage is improved sliding properties and the property of being electrically non-conductive and non-magnetic.

The styli are compatible with the following systems:

ConturMatic

Mahr

Jenoptik

Hommel

Accretech

Zeiss

Mitutoyo

Taylor Hobson

轮廓测针
